Types of LED Lights
Types of LED Lights
| Part Code: | FD10COBC |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 10Watts |
| Input Power : | 11.4Watts |
| IP Rating : | 66 |
| View Angle : | 120° |
| LED Efficiency : | 116Lum/Watt |
| CCT : | 4700K-7000K |
| Output Lumen : | 1100Lumens |
| Application : | Outdoor Purposes |
| Part Code: | FD10COBW |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 10Watts |
| Input Power : | 11.5Watts |
| IP Rating : | 66 |
| View Angle : | 120° |
| LED Efficiency : | 110Lum/Watt |
| CCT : | 2600K-3200K |
| Output Lumen : | 1040Lumens |
| Application : | Outdoor Purposes |
| Part Code: | FD20COBC |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 10Watts |
| Input Power : | 21.5Watts |
| IP Rating : | 66 |
| View Angle : | 125° |
| LED Efficiency : | 130Lum/Watt |
| CCT : | 4700K-7000K |
| Output Lumen : | 1100Lumens |
| Application : | Outdoor Purposes |
| Part Code: | FD20COBW |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 10Watts |
| Input Power : | 21.5Watts |
| IP Rating : | 66 |
| View Angle : | 120° |
| LED Efficiency : | 110Lum/Watt |
| CCT : | 2600K-3200K |
| Output Lumen : | 1100Lumens |
| Application : | Outdoor Purposes |
| Part Code: | FD50COBW |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 50Watts |
| Input Power : | 50Watts |
| IP Rating : | 66 |
| View Angle : | 120° |
| LED Efficiency : | 100Lum/Watt |
| CCT : | 2600K-3200K |
| Output Lumen : | 4750Lumens |
| Application : | Outdoor Purposes |
| Part Code: | HY30COBC |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 30Watts |
| Input Power : | 33.9Watts |
| IP Rating : | 60 |
| View Angle : | 120° |
| LED Efficiency : | 122Lum/Watt |
| CCT : | 4700K-7000K |
| Output Lumen : | 7227Lumens |
| Application : | Outdoor Purposes |
| Part Code: | HY60COBC |
| Operating voltage : | 1160V-270V AC 50Hz |
| Power : | 60Watts |
| Input Power : | 66.5Watts |
| IP Rating : | 60 |
| View Angle : | 120° |
| LED Efficiency : | 122Lum/Watt |
| CCT : | 4700K-7000K |
| Output Lumen : | 7227Lumens |
| Application : | Outdoor Purposes |
| Part Code: | HY90COBC |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 90Watts |
| Input Power : | 98.57Watts |
| IP Rating : | 60 |
| View Angle : | 120° |
| LED Efficiency : | 118Lum/Watt |
| CCT : | 4700K-7000K |
| Output Lumen : | 10600Lumens |
| Application : | Outdoor Purposes |

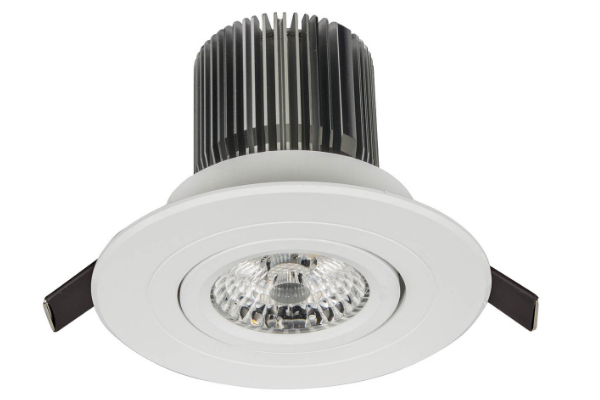

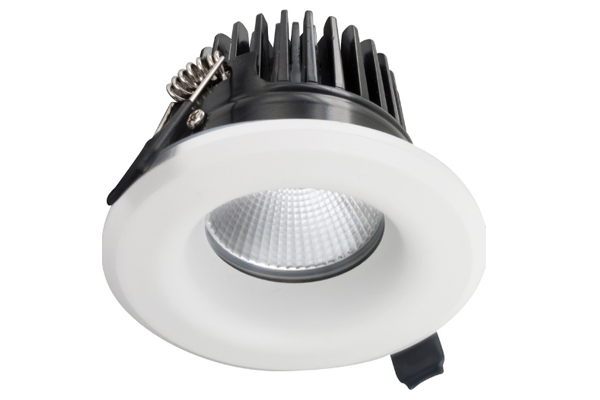

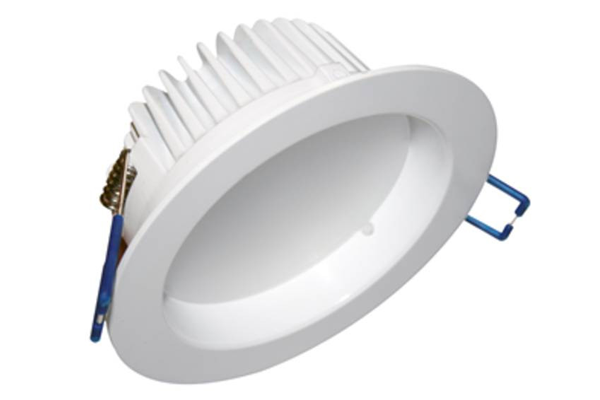

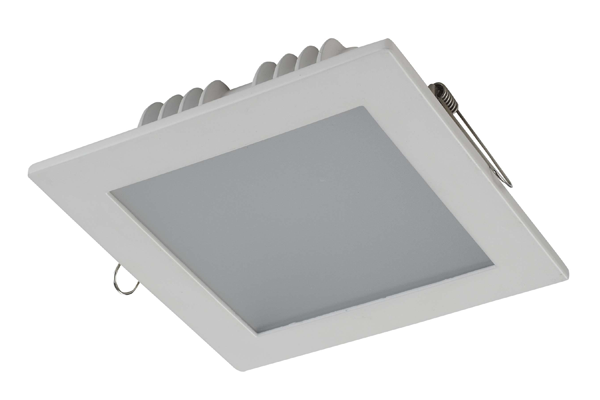

| Part Code: | DN3350C |
| Operating voltage: | 160-270V AC 50Hz |
| Power : | 3Watts |
| Input Power : | 4.5Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 120lm/W |
| CCT : | 5300-6500K(Cool white) 2700-3000K(Warm white) |
| Output Lumen : | 306Lumens |
| Application : | Indoor Lighting |
| Part Code: | DN1350C |
| Operating voltage: | 160-270V AC 50Hz |
| Power : | 1Watt |
| Input Power : | 1.5Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 5300-6500K(Cool white) 2700-3000K(Warm white) |
| Output Lumen : | 114Lumens |
| Application : | Indoor Lighting |
| Part Code: | DN7150C |
| Operating voltage: | 160-270V AC 50Hz |
| Power : | 7Watts |
| Input Power : | 8.5Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 5300-6500K(Cool white) 2700-3000K(Warm white) |
| Output Lumen : | 612Lumens |
| Application : | Indoor Lighting |
| Part Code: | DN15100C |
| Operating voltage: | 160-270V AC 50Hz |
| Power : | 15Watts |
| Input Power : | 17.5Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 5300-6500K(Cool white) 2700-3000K(Warm white) |
| Output Lumen : | 1530Lumens |
| Application : | Indoor Lighting |
| Part Code: | DN24100C |
| Operating voltage: | 160-270V AC 50Hz |
| Power : | 24Watts |
| Input Power : | 26Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 5300-6500K(Cool white) 2700-3000K(Warm white) |
| Output Lumen : | 2431Lumens |
| Application : | Indoor Lighting |
| Part Code: | DN18150C |
| Operating voltage: | 160-270V AC 50Hz |
| Power : | 3Watts |
| Input Power : | 18Watts |
| IP Rating : | 20 |
| View Angle : | 120° |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 5300-6500K(Cool white) 2700-3000K(Warm white) |
| Output Lumen : | 1645Lumens |
| Application : | Indoor Lighting |

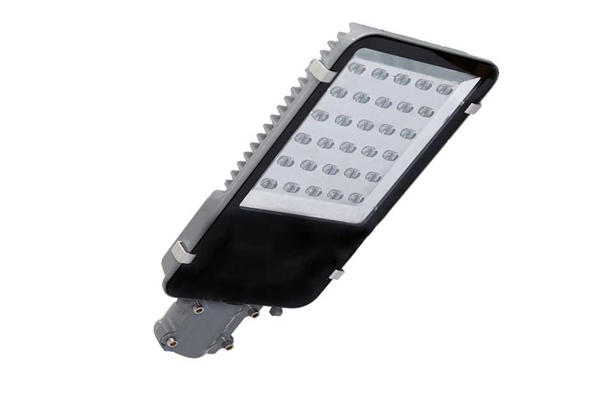

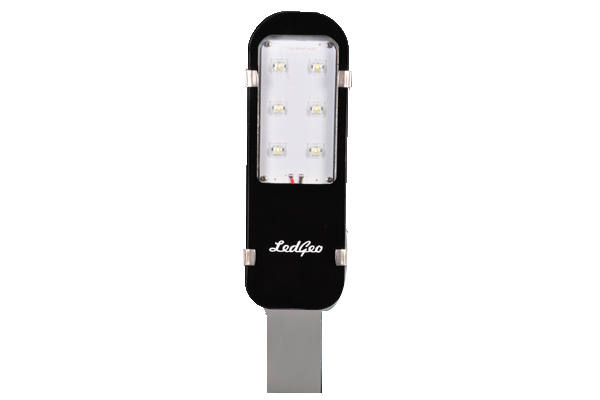

| Part Code: | ST10150C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 10Watts |
| Input Power : | 12Watts |
| IP Rating : | 65 |
| View Angle : | 120° |
| LED Efficiency : | 115Lum/Watt |
| CCT : | 2700-6500K |
| Output Lumen : | 1092Lumens |
| Application : | Outdoor Lighting |
| Part Code: | ST50700CDL |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 20Watts |
| Input Power : | 24Watts |
| IP Rating : | 65 |
| View Angle : | 120° |
| LED Efficiency : | 130Lum/Watt |
| CCT : | 2700-6500K |
| Output Lumen : | 2180Lumens |
| Application : | Outdoor Lighting |
| Part Code: | FD10COBC |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 10Watts |
| Input Power : | 11.4Watts |
| IP Rating : | 66 |
| View Angle : | 120° |
| LED Efficiency : | 116Lum/Watt |
| CCT : | 4700K-7000K |
| Output Lumen : | 1100Lumens |
| Application : | Outdoor Purposes |
| Part Code: | ST36700C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 36Watts |
| Input Power : | 38Watts |
| IP Rating : | 65 |
| View Angle : | 127° |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 5700K-6500K |
| Output Lumen : | 3620Lumens |
| Application : | Outdoor Lighting |
| Part Code: | ST36500C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 36Watts |
| Input Power : | 40Watts |
| IP Rating : | 65 |
| View Angle : | 120° |
| LED Efficiency : | 140lm/W |
| CCT : | 2700-6500K |
| Output Lumen : | 3610Lumens |
| Application : | Outdoor Lighting |
| Part Code: | ST60500C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 60Watts |
| Input Power : | 66Watts |
| IP Rating : | 65 |
| View Angle : | 120° |
| LED Efficiency : | 140lm/W |
| CCT : | 2700-6500K |
| Output Lumen : | 6030Lumens |
| Application : | Outdoor Lighting |
| Part Code: | ST72600C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 72Watts |
| Input Power : | 77Watts |
| IP Rating : | 65 |
| View Angle : | 120° |
| LED Efficiency : | 140lm/W |
| CCT : | 2700-6500K |
| Output Lumen : | 7205Lumens |
| Application : | Outdoor Lighting |
| Part Code: | ST120600C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 120Watts |
| Input Power : | 127Watts |
| IP Rating : | 65 |
| View Angle : | 120° |
| LED Efficiency : | 120lm/W |
| CCT : | 2700-6500K |
| Output Lumen : | 12027Lumens |
| Application : | Outdoor Lighting |

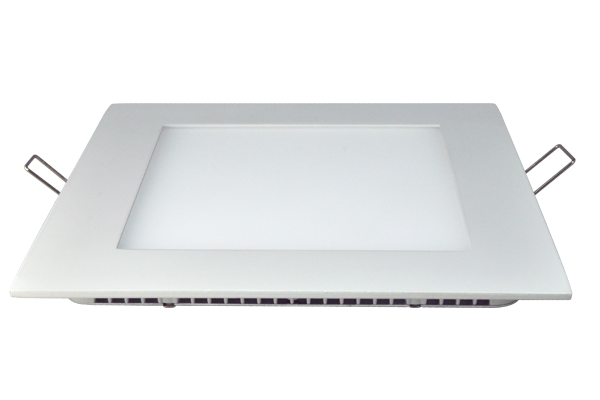

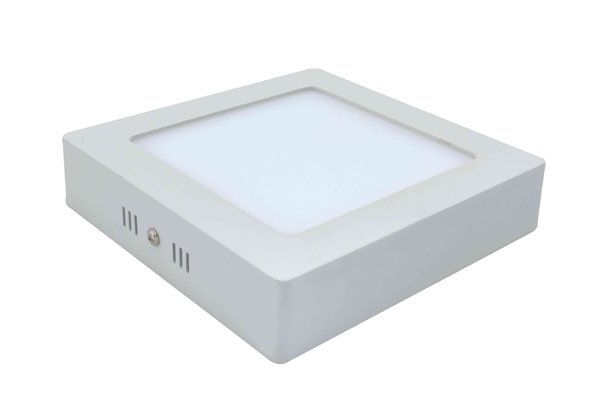

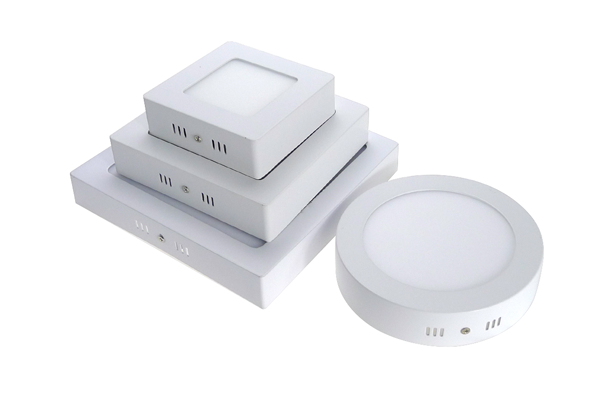

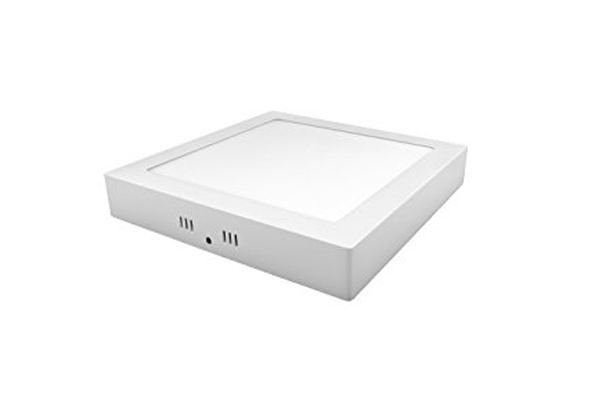

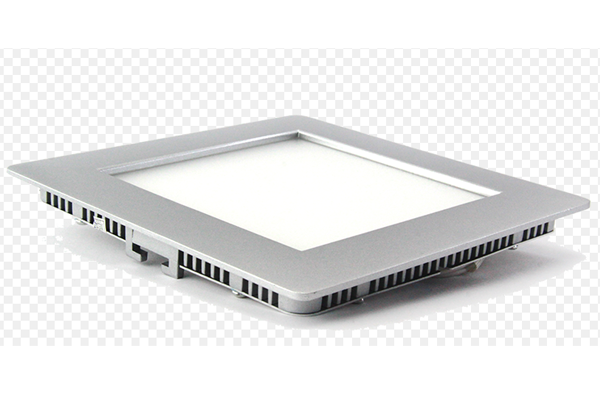

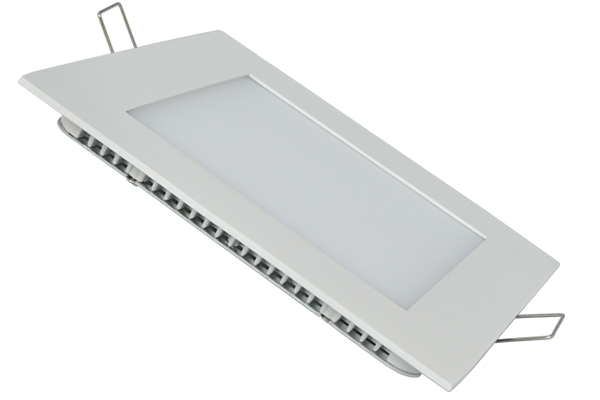

| Part Code: | PLS9100C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 9Watts |
| Input Power : | 10.5Watts |
| IP Rating : | 40 |
| View Angle : | 120° |
| LED Efficiency : | 39Lum/Watt |
| CCT : | 5300K-7000K |
| Output Lumen : | 930Lumens |
| Application : | Indoor Lighting |
| Part Code: | PLS9100W |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 9Watts |
| Input Power : | 9.8Watts |
| IP Rating : | 40 |
| View Angle : | 120° |
| LED Efficiency : | 38Lum/Watt |
| CCT : | 2900K-3700K |
| Output Lumen : | 900lumens |
| Application : | Indoor Lighting |
| Part Code: | PLS12100C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 12Watts |
| Input Power : | 13.2Watts |
| IP Rating : | 40 |
| View Angle : | 120° |
| LED Efficiency : | 39Lum/Watt |
| CCT : | 5300K-7000K |
| Output Lumen : | 1325Lumens |
| Application : | Indoor Lighting |
| Part Code: | PLS12100W |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 12Watts |
| Input Power : | 12.8Watts |
| IP Rating : | 40 |
| View Angle : | 120° |
| LED Efficiency : | 38Lum/Watt |
| CCT : | 2900K-3700K |
| Output Lumen : | 1250Lumens |
| Application : | Indoor Lighting |
| Part Code: | PLS20100C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 20Watts |
| Input Power : | 24Watts |
| IP Rating : | 40 |
| View Angle : | 120° |
| LED Efficiency : | 39Lum/Watt |
| CCT : | 5300K-7000K |
| Output Lumen : | 2387Lumens |
| Application : | Indoor Lighting |
| Part Code: | PLS20100W |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 20Watts |
| Input Power : | 23Watts |
| IP Rating : | 40 |
| View Angle : | 120° |
| LED Efficiency : | 38Lum/Watt |
| CCT : | 2900K-3700K |
| Output Lumen : | 2325Lumens |
| Application : | Indoor Lighting |
| Part Code: | PLS36100C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 10Watts |
| Input Power : | 11.4Watts |
| IP Rating : | 66 |
| View Angle : | 120° |
| LED Efficiency : | 116Lum/Watt |
| CCT : | 4700K-7000K |
| Output Lumen : | 1100Lumens |
| Application : | Indoor Lighting |

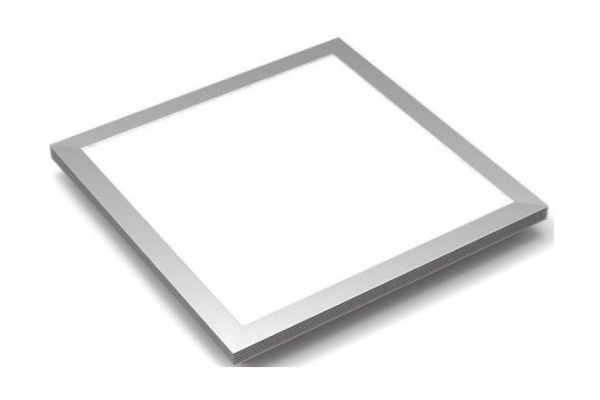

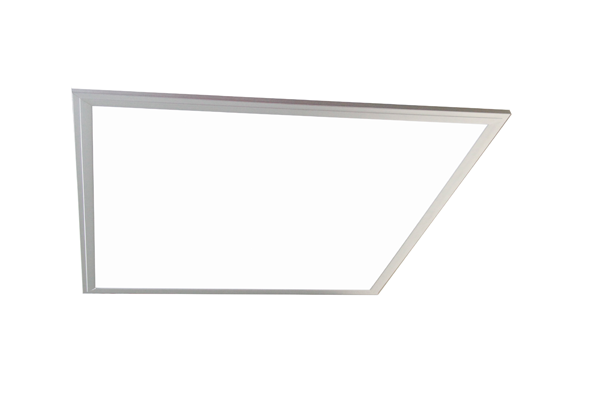

| Part Code: | PLS36100C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 36Watts |
| Input Power : | 42Watts |
| IP Rating : | 20 |
| View Angle : | 120° |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 2700-3000K |
| Output Lumen : | 1100Lumens |
| Application : | Indoor Lighting |
| Part Code: | PLS3620C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 36Watts |
| Input Power : | 38Watts |
| IP Rating : | 20 |
| View Angle : | 120 deg |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 2700-6500K |
| Output Lumen : | 9000lm |
| Application : | Indoor Lighting |
| Part Code: | PLR5100C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 5Watts |
| Input Power : | 7Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 2700-3000K |
| Output Lumen : | 408Lumens |
| Application : | Indoor Lighting |
| Part Code: | PLS15050C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 15Watts |
| Input Power : | 16.4Watts |
| IP Rating : | 40 |
| View Angle : | 120° |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 2700-3000K |
| Output Lumen : | 1508Lumens |
| Application : | Indoor Lighting |
| Part Code: | PLS22050C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 22Watts |
| Input Power : | 23.5Watts |
| IP Rating : | 40 |
| View Angle : | 120° |
| LED Efficiency : | 120Lum/Watt |
| CCT : | 2700-3000K |
| Output Lumen : | 2380Lumens |
| Application : | Indoor Lighting |
| Part Code: | TL1830C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 18Watts |
| Input Power : | 15.8Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 110lm/W |
| CCT : | 6000-6500K |
| Output Lumen : | 1700Lm |
| LED Make : | Edision |
| Application : | Indoor lighting |
| Part Code: | TL1830C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 18Watts |
| Input Power : | 15.8Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 110lm/W |
| CCT : | 6000-6500K |
| Output Lumen : | 1700Lm |
| LED Make : | Edision |
| Application : | Indoor lighting |
| Part Code: | TL1830C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 18Watts |
| Input Power : | 15.8Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 110lm/W |
| CCT : | 6000-6500K |
| Output Lumen : | 1700Lm |
| LED Make : | Edision |
| Application : | Indoor lighting |
| Part Code: | TL1830C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 18Watts |
| Input Power : | 15.8Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 110lm/W |
| CCT : | 6000-6500K |
| Output Lumen : | 1700Lm |
| LED Make : | Edision |
| Application : | Indoor lighting |
| Part Code: | TL1830C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 18Watts |
| Input Power : | 15.8Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 110lm/W |
| CCT : | 6000-6500K |
| Output Lumen : | 1700Lm |
| LED Make : | Edision |
| Application : | Indoor lighting |
| Part Code: | TL1830C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 18Watts |
| Input Power : | 15.8Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 110lm/W |
| CCT : | 6000-6500K |
| Output Lumen : | 1700Lm |
| LED Make : | Edision |
| Application : | Indoor lighting |
| Part Code: | TL1830C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 18Watts |
| Input Power : | 15.8Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 110lm/W |
| CCT : | 6000-6500K |
| Output Lumen : | 1700Lm |
| LED Make : | Edision |
| Application : | Indoor lighting |
| Part Code: | TL1830C |
| Operating voltage : | 160V-270V AC 50Hz |
| Power : | 18Watts |
| Input Power : | 15.8Watts |
| IP Rating : | 30 |
| View Angle : | 120° |
| LED Efficiency : | 110lm/W |
| CCT : | 6000-6500K |
| Output Lumen : | 1700Lm |
| LED Make : | Edision |
| Application : | Indoor lighting |
